CHAIN TRACKS and CHAIN GUIDES

We describe CHAIN TRACKS as a plastic insert in which a roller chain travels--plus a metal mounting.

CHAIN GUIDES are simply a plastic profile used to carry a Roller Chain. At our plant, Claremont Polymer Shapes also produces GUIDES to carry Round, Flat and 'V'-Belts. Usually GUIDES are manufactured using black, abrasion resistant Ultra High Molecular Weight Polyethylene. This product has slightly better abrasive wear resistance and load bearing capability, compared with natural UHMW-PE, while maintaining its low coefficient of friction. And the black does not show the grease and dirt that accumulates from the Roller Chain. For FOOD CONTACT applications or other such applications, we can supply GUIDES in the natural, FDA-approved UHMW-PE.

For higher load applications, GUIDES can be manufactured from Oil-Filled Cast Nylon 6; the green colour is industrial and the natural, ivory colour, is FDA-approved. This material will bear 2 1/2 times the load that the black abrasion resistant UHMW polyethylene can handle and possesses a similarly low coefficient of friction. While Oil-Filled Cast Nylon 6 is more costly, better performance in higher loaded applications may be worth the premium.

The tables below show standard sizes to which we manufacture CHAIN GUIDES. When inquiring, please specify the material from which you wish the GUIDE to be manufactured. Round, Flat and 'V'-Belt GUIDES are produced to your specifications. Simply provide us with a drawing, sketch or sample and Claremont Polymer Shapes would be pleased to manufacture a custom GUIDE for you.

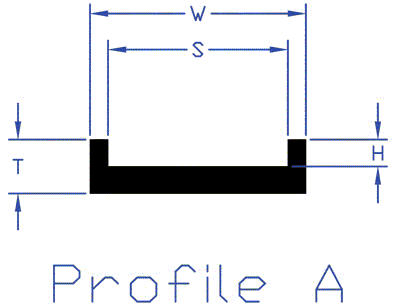

  ASA
Chain No.
T W (min.) H P S Y
A 2040
2050
2060
2080
2100
2120
5/16
3/8
3/8
1/2
5/8
5/8
1 1/4
1 1/4
1 1/2
2
2 1/4
2 3/4
1/8
5/32
3/16
1/4
5/16
3/8
--
--
--
--
--
--
7/8
1
1 1/4
1 9/16
1 7/8
2 1/4
--
--
--
--
--
--

  ASA
Chain No.
T W (min.) H P S Y

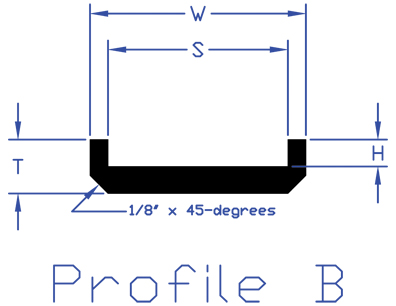

B 2040
2050
2060
2080
2100
2120
5/16
3/8
3/8
1/2
5/8
5/8
1 1/4
1 1/4
1 1/2
2
2 1/4
2 3/4
1/8
5/32
3/16
1/4
5/16
3/8
--
--
--
--
--
--
7/8
1
1 1/4
1 9/16
1 7/8
2 1/4
--
--
--
--
--
--

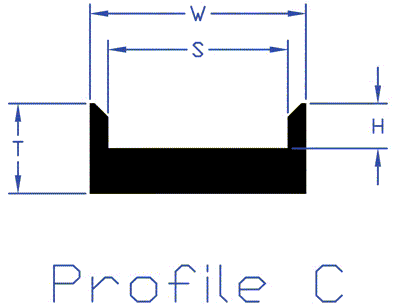

  ASA
Chain No.
T W (min.) H P S Y
C 2040
2050
2060
2080
2100
2120
1/2
1/2
5/8
5/8
3/4
7/8
1
1 1/4
1 1/2
2
2 1/4
3
1/4
9/32
5/16
3/8
7/16
9/16
--
--
--
--
--
--
3/4
1
1 1/4
1 1/2
1 13/16
2 1/4
--
--
--
--
--
--

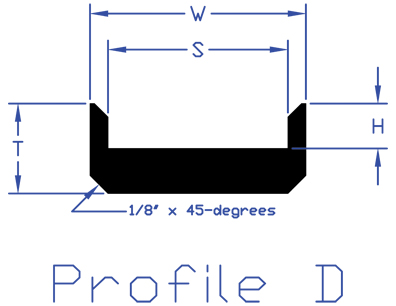

  ASA
Chain No.
T W (min.) H P S Y
D 2040
2050
2060
2080
2100
2120
1/2
1/2
5/8
5/8
3/4
7/8
1
1 1/4
1 1/2
2
2 1/4
3
1/4
9/32
5/16
3/8
7/16
9/16
--
--
--
--
--
--
3/4
1
1 1/4
1 1/2
1 13/16
2 1/4
--
--
--
--
--
--

  ASA
Chain No.
T W (min.) H P S Y

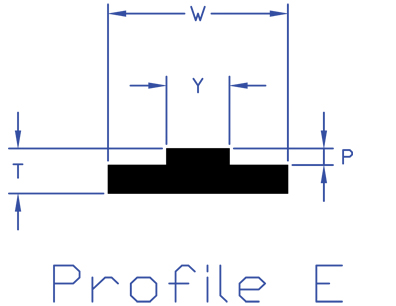

E 2040
2050
2060
2080
2100
2120
5/16
5/16
5/16
3/8
1/2
1/2
1
1 1/4
1 1/4
1 1/2
2
2 1/4
0.080
0.100
0.115
0.130
0.210
0.260
--
--
--
--
--
--
--
--
--
--
--
--
1/4
5/16
7/16
9/16
11/16
15/16

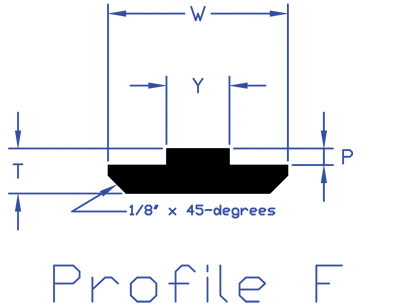

  ASA
Chain No.
T W (min.) H P S Y
F 2040
2050
2060
2080
2100
2120
5/16
5/16
5/16
3/8
1/2
1/2
1
1 1/4
1 1/4
1 1/2
2
2 1/4
0.080
0.100
0.115
0.130
0.210
0.260
--
--
--
--
--
--
--
--
--
--
--
--
1/4
5/16
7/16
9/16
11/16
15/16

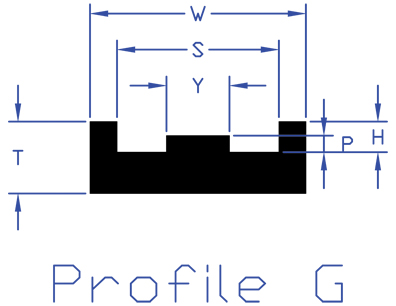

  ASA
Chain No.
T W (min.) H P S Y
G 2040
2050
2060
2080
5/16
3/8
1/2
1/2
1
1 1/4
1 1/2
2
0.140
0.188
0.213
0.250
0.080
0.100
0.115
0.130
11/16
13/16
1 1/8
1 7/16
1/4
5/16
7/16
9/16

Aluminum Conveyor CHAIN TRACKS are produced from extruded Aluminum Alloy 6061, T6 Temper. Standard inserts for carrying Roller Chain are manufactured from Black Abrasion Resistant UHMW Polyethylene. Please see the table for details.

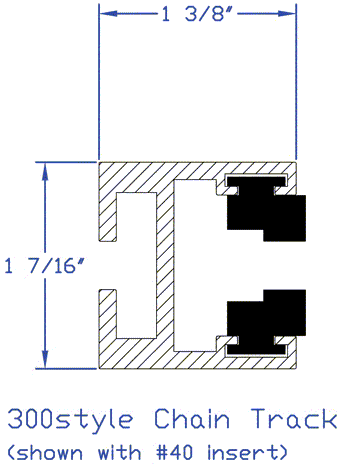

GR30040

Available for ANSI #35, #40, #50 and #60 Roller Chains.

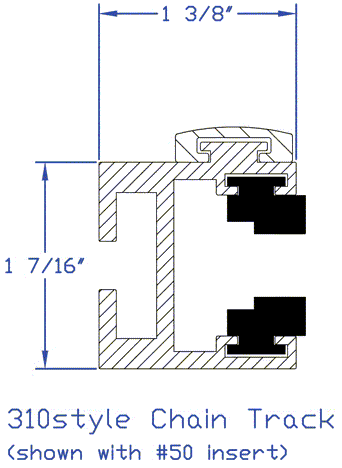

GR31050

Available for ANSI #35, #40, #50 and #60 Roller Chains.

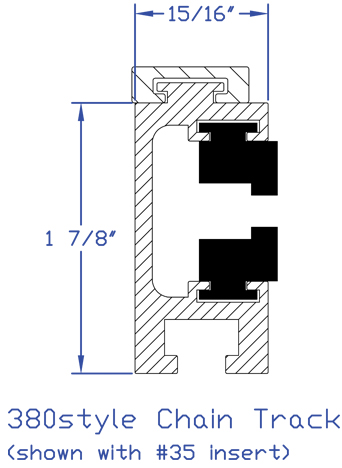

GR38035

Available for ANSI #35, #40, #50 and #60 Roller Chains.

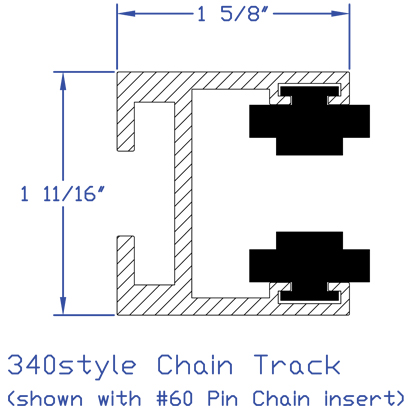

GR34060PC

Available for ANSI #60-Pin and #80 Roller Chains.

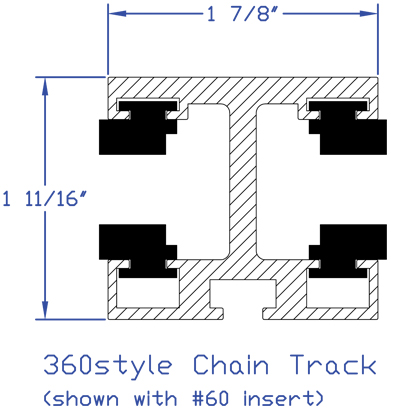

GR36060

Available for ANSI #35, #40, #50 and #60 Roller Chains.


Stainless Steel and Galvanized Steel Mounted Conveyor CHAIN TRACKS, developed many years ago in Europe, are based on the following Box Channels, manufactured in pre-Galvanized Steel, and Stainless Steel Alloy S30400 roll-formed sections.

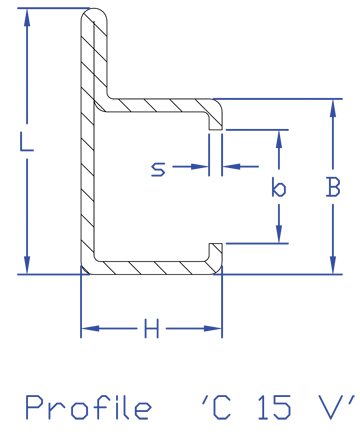

C10 C14H C15V

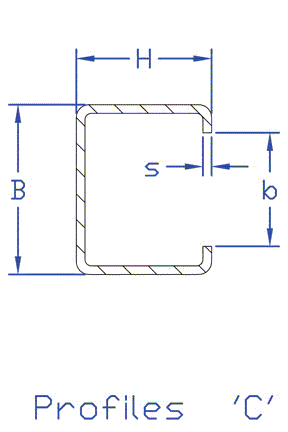

'C'-Channel Profiles

Part Number Profile
No.
B b H s L Weight
(lbs./ft.)
Galvanized Steel Stainless Steel
C1-GAL C1-SS C 1 0.94 0.69 0.20 0.04 -- 0.19
C3-GAL C3-SS C 3 0.79 0.39 0.39 0.06 -- 0.33
C5-GAL C5-SS C 5 1.10 0.55 0.47 0.09 -- 0.58
C7-GAL C7-SS C 7 1.10 0.55 0.63 0.10 -- 0.79
C9-GAL C9-SS C 9 1.50 0.87 0.71 0.10 -- 1.00
C10-GAL C10-SS C 10 1.18 0.79 0.94 0.06 -- 0.65
C11-GAL C11-SS C 11 1.77 1.22 1.57 0.074 -- 1.39
C12-GAL C12-SS C 12 2.36 1.42 0.79 0.10 -- 1.46
C13-GAL C13-SS C 13 2.56 1.57 2.17 0.12 -- 2.92

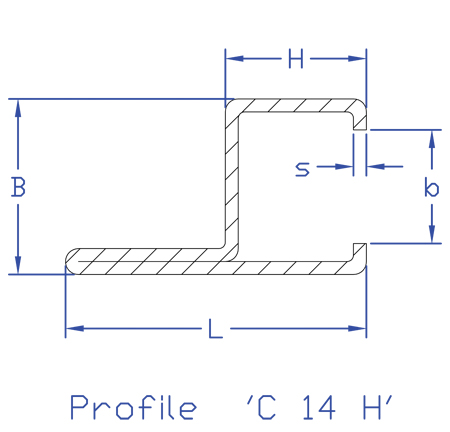

C14H-GAL C14H-SS C 14 H 1.22 0.79 0.98 0.09 1.85 1.26
C15V-GAL C15H-SS C 15 V 1.22 0.79 0.98 0.09 2.09 1.28


While the following GUIDE TRACKS are all based on carrying ANSI Roller Chain, they can be manufactured according to your specifications to carry Round-Cord Belts, Flat Belts and 'V'-Belts. GUIDE TRACKS can also be produced to carry other chains, such as British Standard.

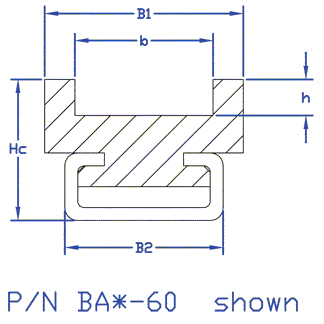

'A'-style Guide Track

BA Part Number Chain No. Profile
No.
Standard Dimensions
(inches)
ANSI DIN B1 B2 Hc b h
BA*-35 35 06 C-1 C 3 0.79 0.79 0.67 0.43 0.12
BA*-40 40 08 A-1 C 3 0.98 0.79 0.71 0.61 0.16
BA*-50 50 10 A-1 C 5 1.18 1.10 0.87 0.77 0.20
BA*-60 60 12 A-1 C 5 1.38 1.10 0.98 0.96 0.25
BA*-80 80 16 A-1 C 9 1.57 1.50 1.26 1.23 0.33
BA*-100 100 20 A-1 C 9 1.97 1.50 1.46 1.51 0.42
BA*-120 120 24 A-1 C 12 2.36 2.36 1.57 1.91 0.51
BA*-140 140 28 A-1 C 12 2.76 2.36 1.67 2.07 0.60
BA*-160 160 32 A-1 C 12 3.15 2.36 1.85 2.46 0.66
*  “G” for Galvanized Steel 'C'-Channel  OR  “S” for Stainless Steel 'C'-Channel

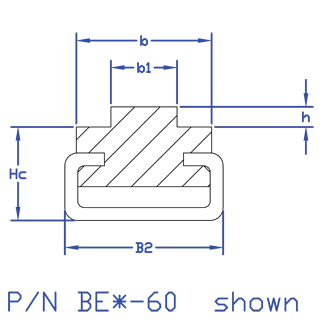

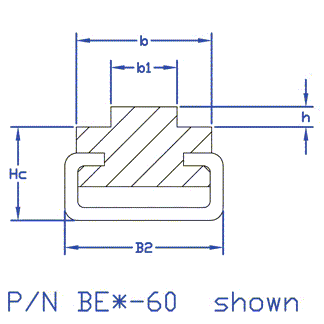

'E'-style Guide Track

BE Part
Number
Chain No. Profile
No.
Standard Dimensions
(inches)
ANSI DIN B1 B2 Hc b h
BE*-35 35 06 C-1 C 3 0.67 0.79 0.67 0.17 0.09
BE*-40 40 08 A-1 C 3 0.67 0.79 0.67 0.29 0.09
BE*-50 50 10 A-1 C 3 0.67 0.79 0.67 0.35 0.11
BE*-60 60 12 A-1 C 5 0.94 1.10 0.79 0.46 0.14
BE*-80 80 16 A-1 C 5 0.94 1.10 0.79 0.58 0.19
BE*-100 100 20 A-1 C 5 0.94 1.10 0.91 0.70 0.25
BE*-120 120 24 A-1 C 9 1.30 1.50 1.18 0.93 0.31
BE*-140 140 28 A-1 C 9 1.30 1.50 1.26 0.93 0.38
BE*-160 160 32 A-1 C 12 2.17 2.36 1.57 1.17 0.44
*  “G” for Galvanized Steel 'C'-Channel  OR  “S” for Stainless Steel 'C'-Channel

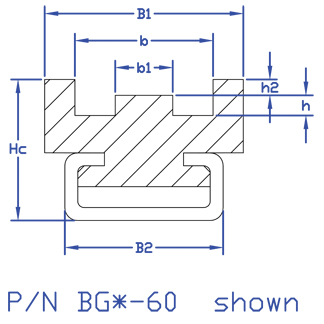

'G'-style Guide Track

BG Part
Number
Chain No. Profile
No.
Standard Dimensions
(inches)
ANSI DIN B1 B2 Hc b1 b2 h1 h2
BG*-35 35 06 C-1 C 3 0.79 0.79 0.67 0.15 0.43 0.09 0.03
BG*-40 40 08 A-1 C 3 0.98 0.79 0.71 0.25 0.61 0.09 0.07
BG*-50 50 10 A-1 C 5 1.18 1.10 0.87 0.30 0.77 0.11 0.09
BG*-60 60 12 A-1 C 5 1.38 1.10 0.98 0.40 0.96 0.14 0.11
BG*-80 80 16 A-1 C 9 1.57 1.50 1.26 0.50 1.23 0.19 0.14
BG*-100 100 20 A-1 C 9 1.97 1.50 1.46 0.59 1.51 0.25 0.17
BG*-120 120 24 A-1 C 12 2.36 2.36 1.57 0.80 1.91 0.31 0.20
BG*-140 140 28 A-1 C 12 2.76 2.36 1.67 0.80 2.07 0.38 0.22
BG*-160 160 32 A-1 C 12 3.15 2.36 1.85 0.99 2.46 0.41 0.25
*  “G” for Galvanized Steel 'C'-Channel  OR  “S” for Stainless Steel 'C'-Channel

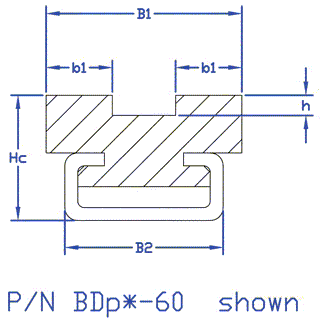

Duplex Chain Guide Track

BDp Part
Number
Chain No. Profile
No.
Standard Dimensions
(inches)
ANSI DIN B1 B2 Hc b1 h
BDp*-35-2 35-2 06 C-2 C 3 0.57 0.79 0.67 0.17 0.09
BDp*-40-2 40-2 08 A-2 C 3 0.86 0.79 0.67 0.29 0.09
BDp*-50-2 50-2 10 A-2 C 5 1.06 1.10 0.79 0.35 0.11
BDp*-60-2 60-2 12 A-2 C 5 1.36 1.10 0.87 0.46 0.14
BDp*-80-2 80-2 16 A-2 C 9 1.73 1.50 1.18 0.58 0.19
BDp*-100-2 100-2 20 A-2 C 12 2.09 2.36 1.18 0.70 0.25
BDp*-120-2 120-2 24 A-2 C 12 2.72 2.36 1.38 0.93 0.31
BDp*-140-2 140-2 28 A-2 C 12 2.83 2.36 1.57 0.93 0.38
BDp*-160-2 160-2 32 A-2 C 12 3.46 2.36 1.77 1.17 0.44
*  “G” for Galvanized Steel 'C'-Channel  OR  “S” for Stainless Steel 'C'-Channel

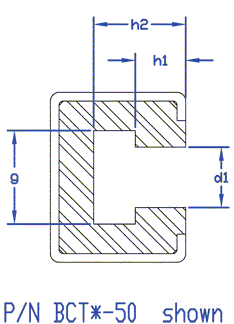

Chain Track

BCT Part
Number
Chain
No.
Profile
No.
Standard Dimensions
(inches)
ANSI DIN d1 g h1 h2
BCT*-35 35 06 C-1 C 10 0.21 0.39 0.17 0.37
BCT*-40 40 08 A-1 C 10 0.33 0.52 0.29 0.53
BCT*-50 50 10 A-1 C 10 0.42 0.65 0.35 0.64
BCT*-60 60 12 A-1 C 11 0.49 0.78 0.46 0.81
BCT*-80 80 16 A-1 C 11 0.66 1.04 0.58 1.01
BCT*-100 100 20 A-1 C 13 0.79 1.30 0.70 1.23
BCT*-120 120 24 A-1 C 13 0.92 1.57 0.93 1.56
BCT*-140 140 28 A-1 C 13 1.05 1.83 0.93 1.64
*  “G” for Galvanized Steel 'C'-Channel  OR  “S” for Stainless Steel 'C'-Channel

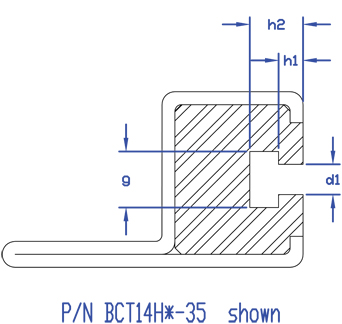

Horizontal Tab Chain Track

BC14H Part
Number
Chain
No.
Profile
No.
Standard Dimensions
(inches)
ANSI DIN d1 g h1 h2
BCT14H*-35 35 06 C-1 C 14 H 0.21 0.39 0.17 0.37
BCT14H*-40 40 08 A-1 C 14 H 0.33 0.52 0.29 0.53
BCT14H*-50 50 10 A-1 C 14 H 0.42 0.65 0.35 0.64
BCT14H*-60 60 12 A-1 C 14 H 0.49 0.78 0.46 0.81
*  “G” for Galvanized Steel 'C'-Channel  OR  “S” for Stainless Steel 'C'-Channel

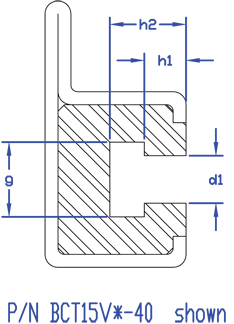

Vertical Tab Chain Track

BC15V Part
Number
Chain No. Profile
No.
Standard Dimensions
(inches)
ANSI DIN d1 g h1 h2
BCT15V*-35 35 06 C-1 C 15 V 0.21 0.39 0.17 0.37
BCT15V*-40 40 08 A-1 C 15 V 0.33 0.52 0.29 0.53
BCT15V*-50 50 10 A-1 C 15 V 0.42 0.65 0.35 0.64
BCT15V*-60 60 12 A-1 C 15 V 0.49 0.78 0.46 0.81
*  “G” for Galvanized Steel 'C'-Channel  OR  “S” for Stainless Steel 'C'-Channel


When designing a TRACK or GUIDE to carry a plastic (or fabric) Round, Flat or 'V'-Belts, it may be necessary to have us manufacture the TRACK-insert or GUIDE from Anti-Static UHMW Polyethylene to aid in the dissipation of any static charge which may be generated.

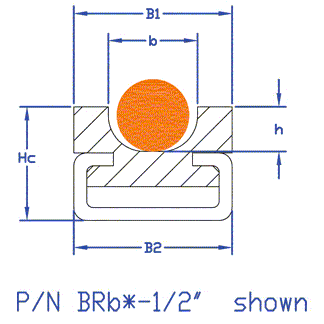

Round-Cord Belt Track

Round Part
Number
Belt Size
(dia.)
Profile
No.
Standard Dimensions
(inches)
B1 B2 Hc b h
BRb*-1/4" 1/4 inch C 3 0.79 0.79 0.71 0.32 0.16
BRb*-5/16" 5/16 inch C 3 0.79 0.79 0.71 0.40 0.20
BRb*-3/8" 3/8 inch C 5 1.10 1.10 0.79 0.48 0.24
BRb*-1/2" 1/2 inch C 5 1.10 1.10 0.79 0.62 0.31
BRb*-9/16" 9/16 inch C 5 1.10 1.10 0.79 0.70 0.35
BRb*-5/8" 5/8 inch C 5 1.10 1.10 0.94 0.78 0.39
*  “G” for Galvanized Steel 'C'-Channel  OR  “S” for Stainless Steel 'C'-Channel

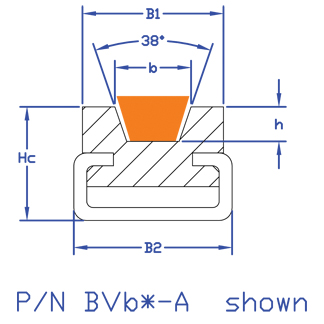

'V' Belt Track

Vee Part
Number
Belt Size Profile
No.
Standard Dimensions
(inches)
B1 B2 Hc b h
BVb*-3L 3L C 3 0.79 0.79 0.71 0.41 0.18
BVb*-A A or 4L C 5 0.98 1.10 0.87 0.52 0.24
BVb*-B B or 5L C 5 1.18 1.10 0.94 0.69 0.31
BVb*-C C C 9 1.38 1.50 1.18 0.86 0.41
BVb*-D D C 12 2.36 2.36 1.57 1.27 0.63
*  “G” for Galvanized Steel 'C'-Channel  OR  “S” for Stainless Steel 'C'-Channel

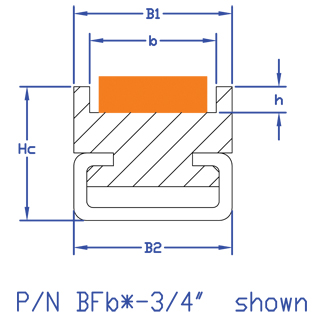

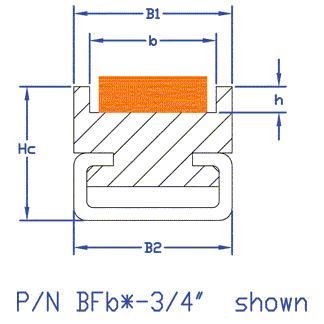

Flat Belt Track

Flat Part
Number
Belt Size Profile
No.
Standard Dimensions
(inches)
B1 B2 Hc b h
BFb*-1/4x3/4 1/4" x 3/4" C 5 1.10 1.10 0.93 0.88 0.18
BFb*-1/4x1 1/4" x 1" C 5 1.38 1.10 0.98 1.12 0.18
*  “G” for Galvanized Steel 'C'-Channel  OR  “S” for Stainless Steel 'C'-Channel
